In the previous post I thanked Enrico for the donation of this Macintosh IIfx, now it’s time to show how it’s been cleaned and repaired. A quarter of a century ago this was the most powerful Macintosh of the series II: it was powered by a 68030 processor at 40MHz, outperformed only by the following Quadra computers with a 68040 processor.

To create the opening image, I shot two pictures on a tripod, with and without the top cover. I isolated the top cover in Photoshop and placed it on top of the second picture with reduced opacity to create the transparency effect.

The computer was put away many years ago, and gathered a lot of dust. This was its condition when I received it:

Apple Macintosh IIfx - dirty

After a complete teardown I started to clean the case; the next picture shows the difference between the top case, just cleaned, and the bottom one, still dirty.

Apple Macintosh IIfx - dirty / clean

The inside was very dirty, too; luckily the batteries didn’t spill any acid, there were only a couple of capacitors that needed to be replaced.

Apple Macintosh IIfx - dirty motherboard

In my experience the Macintosh IIfx is the only Apple computer that has double contacts for every capacitor on the motherboard. Some motherboards have only tantalum capacitors, others only electrolitic surface mounting ones. This one had all tantalum except a couple, that leaked on the motherboard and I replaced. They can be seen in the top right corner in the next picture (click to zoom).

Apple Macintosh IIfx - motherboard

The cpu is a Motorola 68030 clocked at 40Mhz. The RAM modules of the IIfx are unique, not 30 pins like the other contemporary models, but 64; higher capacity modules are now very hard to find. This Mac has for 4MB modules and 4 1MB modules for a total of 20 megabytes of RAM.

Apple Macintosh IIfx - 68030

The 5″1/4 SCSI hard drive is a 160MB Seagate with Apple firmware.

Apple Macintosh IIfx - hard disk

This was the condition of the internal floppy drive before being cleaned from dust and dried grease, then lubricated.

Apple Macintosh IIfx - dirty floppy drive

The power supply fan gathers a lot of dust:

Apple Macintosh IIfx - dirty power supply

Here it is open and cleaned:

Apple Macintosh IIfx - power supply

Tearing apart these old Macs is quite simple: with a Phillips screwdriver all the pieces lay on the table in five minutes.

Apple Macintosh IIfx - teardown

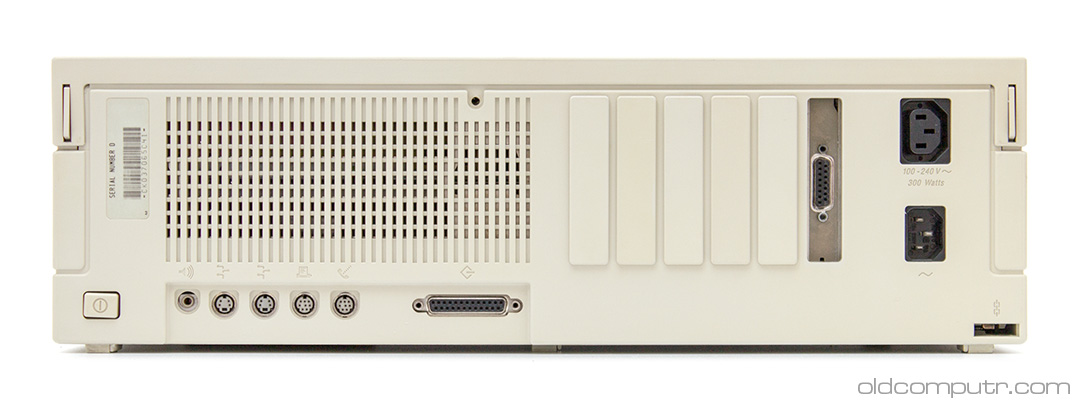

The ports on the back are: audio out, 2 ADB, 2 serial, SCSI.

Apple Macintosh IIfx - back

The video board is a Radius DirectColor GX; it’s unaccelerated but manages million of colours at the resolution of 640×480.

Radius DirectColor GX

The ADB (Apple Desktop Bus) mouse was restored too. All the revisions of the circuit board that I have, even of the following model, were made by Logitech.

Apple ADB mouse

The monitor was very dirty, especially inside. I removed the two halves of the case but I didn’t disassemble the entire monitor.

AppleColor High-resolution RGB Monitor - dirty

AppleColor High-resolution RGB Monitor - dirty inside

Here’s the inside after removing the layer of dust that covered every component.

AppleColor High-resolution RGB Monitor - clean

One last picture of the complete system after reassembling every item. The monitor and the keyboard are a bit yellowed but the IIfx is like new.

Apple Macintosh IIfx


6 thoughts on “Apple Macintosh IIfx (1990)

  1. Chris

    many thanks for posting …

    our first was a ‘IIfx, and it sits behind me as I type – superseded by a ‘G4 since it’s not been used for some years … its has a two-page screen that had begun to go dark every now & then …

    about a year ago, we took the top off & de-dusted the motherboard, and tried switch-on – no response, so we put it aside pending further research …

    didn’t notice any leaky battery or capacitors, but your write-up encourages me to look more closely !

    a new battery must be required, and at the time best-guess was that the monitor problems were power-supply related …

    would be nice to get it going again, and we’d probably use it, too – for the benefit of the Dreams 2D-CAD app’ that worked really well …

    best wishes


  2. eschatologist

    In addition to replacing the 1/2 AA lithium PRAM batteries, you’ll probably need to replace the aluminum can SMT electrolytic capacitors. Fortunately that’s maybe $10 in parts and 1 hour of time with a decent soldering iron.

      1. Chris

        and … do you find you use your IIfx now, to do something useful … or is it just a museum piece ? It was a great machine when we had ours working after we bought it (new), and it’s CAD app was first-class, so we are quite likely to use it again if we do get ours going …

        NB: we’re doing a selfbuild (a house) at the moment, so the IIfx is not yet quite at the top of our list of jobs – but its time will come !
